UNL06

UNL06

INQUIRY

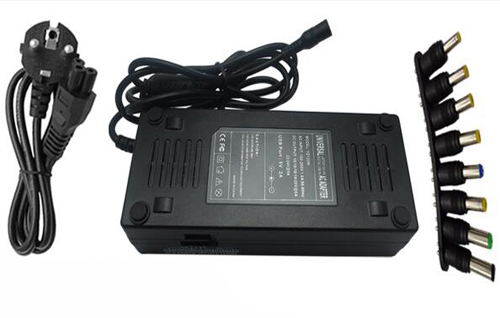

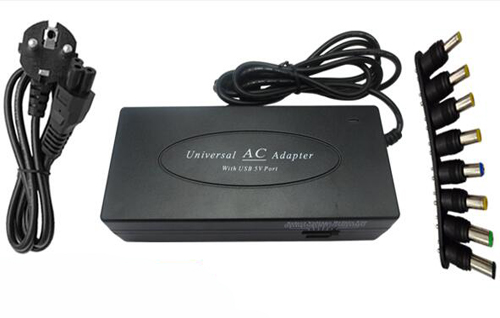

Manual 120W Universal Laptop Home Charger

  • 1. 100% burn-in test for 4 hours before delivery like international standard.
  • 2. 0.3-0.5% defective rate.
  • 3. 100% replacement of the defective goods.
  • 4. Flexible and fast delivery time.
AC Input
Nominal Input Voltage AC 100V~240V
Input Voltage Range AC 95V~265V
Input Frequency 50/60Hz
DC Output
Output Voltage DC 15V/16V/18V/19V/20V/22V/24V (0/+0.5V NOLOAD)
Output Current 15/16/18/19/20V@6A 22/24V@5A
Output Power 120W
DC Connector Size 2 pin (with 8 standard dc tips)
8 Standard DC Tips 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 /4.0*1.7/6.3*3.0 with pin /6.5*4.4 with pin /5.5*3.0 with pin
With USB Port 5V 2A
Line Regulation 1%
Load Regulation 1%
Ripple Noise 180 Mvp-p
Efficiency 85%
Output Cable Standard 0.75mm2 Pure Copper
Output Cable Length 1.5m normally or customized requirement
Advantages
1. It is with LED light and various convertible dc tips
2. The output voltage would be changed by manual when different tips on it
3. It is better and easier for end clients to use it
Environment
Operating Temperature 0°C~40°C
Operating Humidity 5%~95%RH
Storage Temperature -20°C~85°C
Storage Humidity 5%~95%RH
Protection
Over Load Protection Short Circuit Protection
Over Current Protection Over Temperature Protection
Certificates
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Dimensions
Adapter Size 15.3*6.5*3.8 cm
Adapter Weight 365G
Color Box Size 26*16*53 cm
Color Box Weight 65G
PCS/CTN 20PCS or 40PCS
Outer Carton Size 42*27*32.5CM or 53*32.5*42CM
Outer Carton Weight 600G or 800G
GW/CTN 9200G or 18000G
Package
Inner Box Normally neutral color box or customized requirement
Outer Carton Normally neutral standard carton or customized requirement
Warranty
Guarantee 30 days
Warranty 2 years
