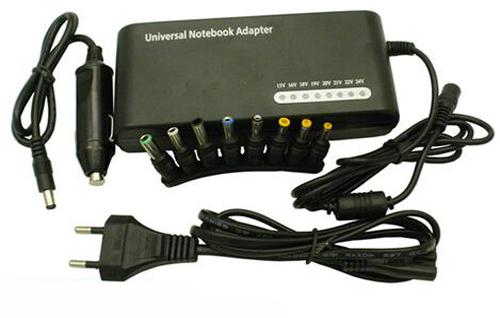

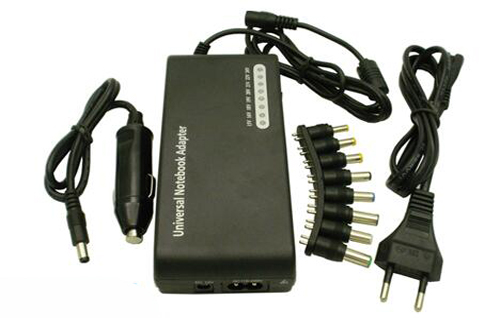

Manual 100W Universal Laptop Home and Car charger
- 1. 100% burn-in test for 4 hours before delivery like international standard.
- 2. 0.3-0.5% defective rate.
- 3. 100% replacement of the defective goods.
- 4. Flexible and fast delivery time.
| AC Input | |
| Nominal Input Voltage | AC 100V~240V |
| Input Voltage Range | AC 95V~265V |
| Input Frequency | 50/60Hz |
| DC Output | |
| Output Voltage | DC 15V/16V/18V/19V/20V/22V/24V (0/+0.5V NOLOAD) |
| Output Current | 15-20V/5A @ 22V-24V/4.1A |
| Output Power | 100W |
| DC Connector Size | 2 pin (with 8 standard dc tips) |
| 8 Standard DC Tips | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 /4.0*1.7/6.3*3.0 with pin /6.5*4.4 with pin /5.5*3.0 with pin |
| With USB Port | 5V 1A |
| Line Regulation | 1% |
| Load Regulation | 1% |
| Ripple Noise | 180 Mvp-p |
| Efficiency | 85% |
| Output Cable Standard | 0.75mm2 Pure Copper |
| Output Cable Length | 1.5m normally or customized requirement |
| Advantages | |
| 1. It is with LED light and various convertible dc tips | |
| 2. The output voltage would be changed by manual when different tips on it | |
| 3. It is better and easier for end clients to use it | |
| Environment | |
| Operating Temperature | 0°C~40°C |
| Operating Humidity | 5%~95%RH |
| Storage Temperature | -20°C~85°C |
| Storage Humidity | 5%~95%RH |
| Protection | |
| Over Load Protection | Short Circuit Protection |
| Over Current Protection | Over Temperature Protection |
| Certificates | |
| CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE | |
| Dimensions | |
| Adapter Size | 14.7*6.6*3.6 cm |
| Adapter Weight | 360G |
| Color Box Size | 26*16*53 cm |
| Color Box Weight | 65G |
| PCS/CTN | 20PCS or 40PCS |
| Outer Carton Size | 42*27*32.5CM or 53*32.5*42CM |
| Outer Carton Weight | 600G or 800G |
| GW/CTN | 8800G or 17200G |
| Package | |
| Inner Box | Normally neutral color box or customized requirement |
| Outer Carton | Normally neutral standard carton or customized requirement |
| Warranty | |
| Guarantee | 30 days |
| Warranty | 2 years |
