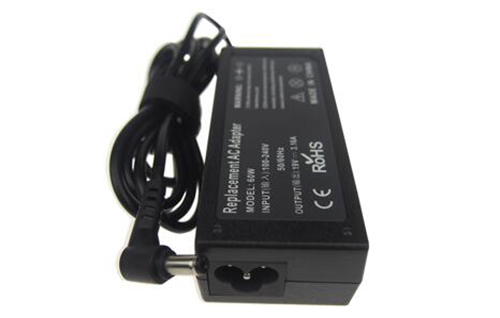

Laptop Adapter 19V 3.16A 5.5*2.5mm
  • 1. 100% burn-in test for 4 hours before delivery like international standard.
  • 2. 0.3-0.5% defective rate.
  • 3. 100% replacement of the defective goods.
  • 4. Flexible and fast delivery time.
AC Input
Nominal Input Voltage AC 100V~240V
Input Voltage Range AC 95V~265V
Input Frequency 50/60Hz
DC Output
Output Voltage 19V
Output Current 3.16A
Output Power 60W
DC Connector Size 5.5*2.5 mm
Line Regulation 2%
Load Regulation 5%
Ripple Noise 180 Mvp-p
Efficiency 85%
Output Cable Standard 0.5mm2 Pure Copper
Output Cable Length 1.5m normally or customized requirement
Environment
Operating Temperature 0°C~40°C
Operating Humidity 5%~95%RH
Storage Temperature -20°C ~85°C
Storage Humidity 5%~95%RH
Protection
Over Load Protection Short Circuit Protection
Over Current Protection Over Temperature Protection
Certificates
CE, ROHS, FCC
Dimensions
Adapter Size 10.8*4.9*2.9CM
Adapter Weight 219G
Inner Box Size 19*13*4.7CM
Inner Box Weight 40G
PCS/CTN 50PCS
Outer Carton Size 48.5*32*40CM
Outer Carton Weight 860G
GW/CTN 13810G
Package
Inner Box Normally neutral brown box or customized requirement
Outer Carton Normally neutral standard carton or customized requirement
Warranty
Guarantee 30 days
Warranty 2 years
